PSU Week 4

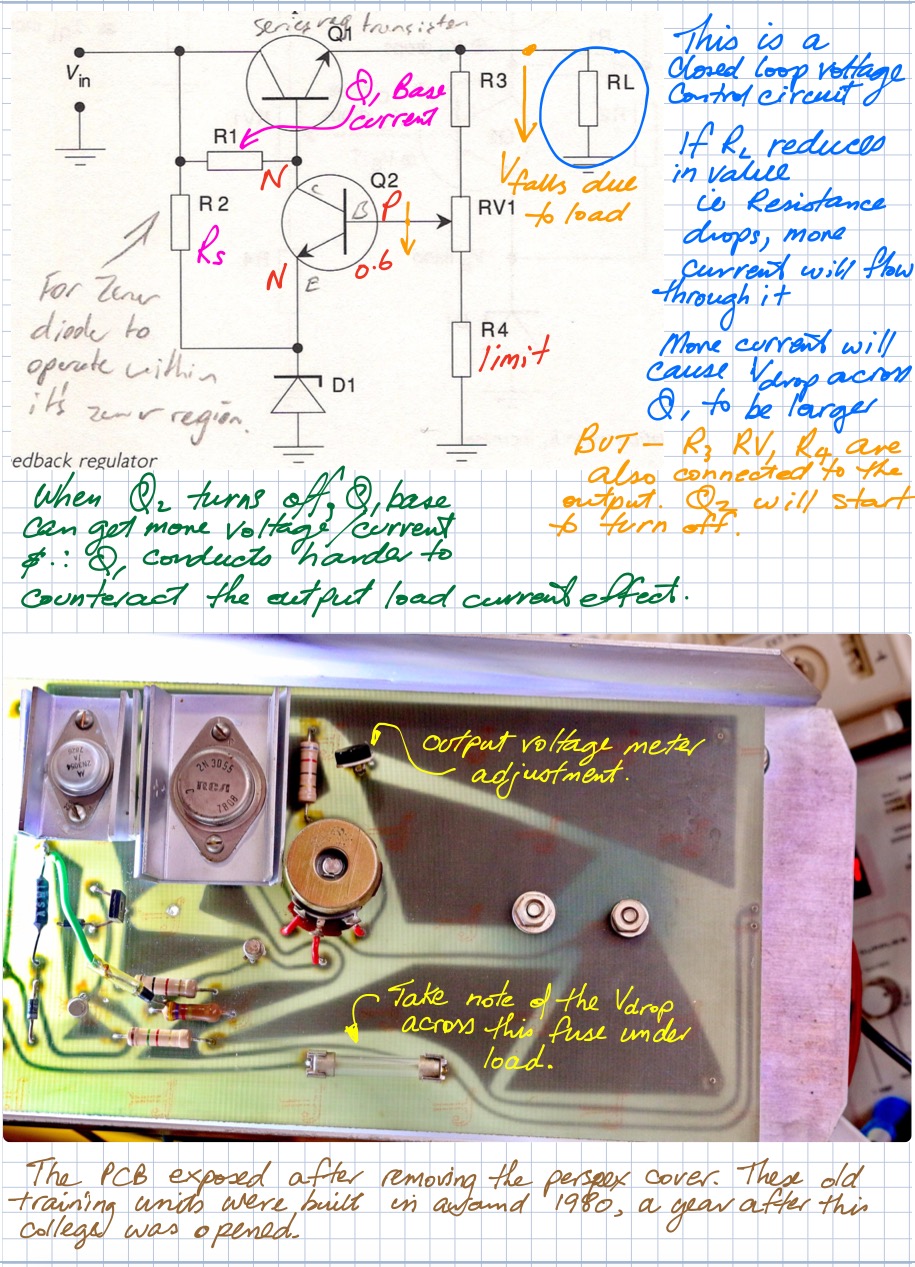

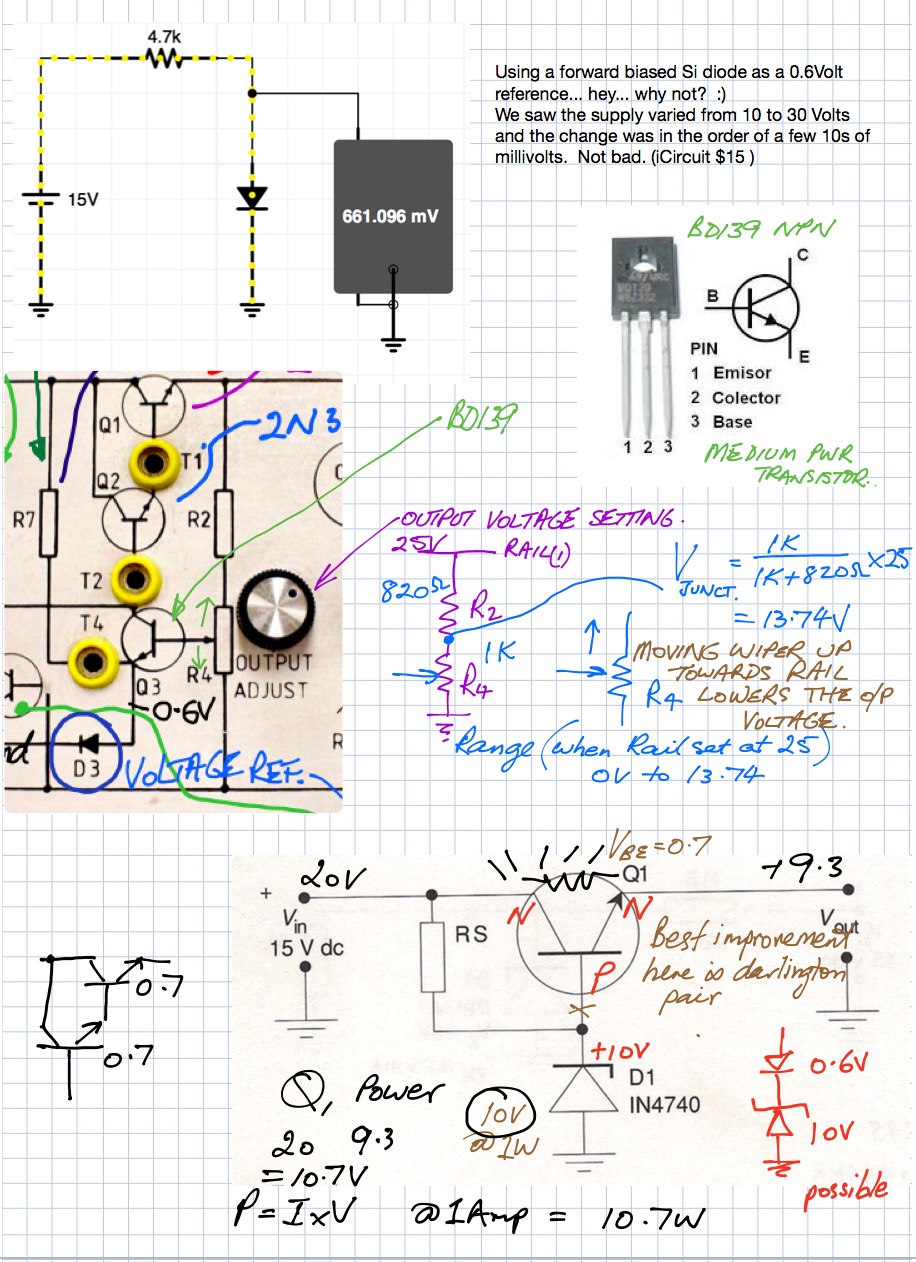

Board notes from Week 4 Complex PSU
These notes also in side tab as a lower resolution downloadable pdf
